LASER RANGE FINDER - ELECTRONIC UNIT
Technical parameters:
Range 50 - 20000 m
Strobe limits from 50 to 20000
Targets up to 10 targets
Precision 5 m
Compass TCM-3
RT clock
 dd/mm/yy hh/min/sec
Remote control up to 30 m
PW protected ON / OFF
Targets memory up to 200 targets
Measurements up to 6 per min.
Power 9-36 V DC
Indicator light auto ON/OFF
Temperature -50 to +50 C°

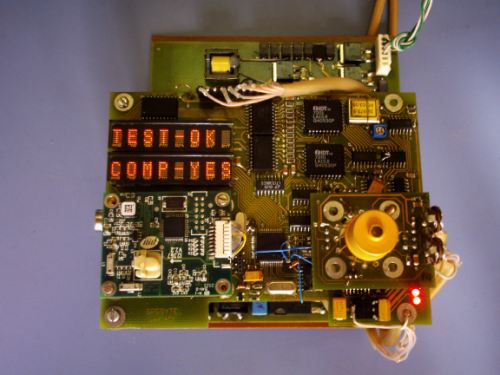

Laser Range Finder

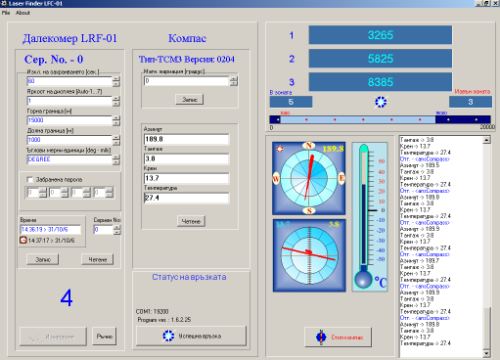

LRF Control panel


Advantages:
Change LRF PW

Show strobes limits

Show targets

in/out working range
Show pitch and roll

Show azimuth

Outdoor temperature

Measurement

auto/ manual
Set RT clock

Set compass decl.

Show distance

up to 3 targets

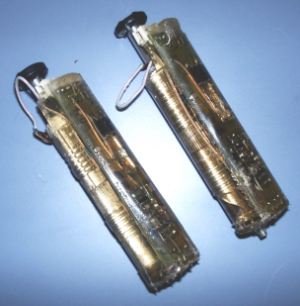

RECORDER OF EXTREME PROCESSES (REP)

Technical parameters :
Sample rate (SR) 1 Hz - 16000 Hz
Non volatile memory FRAM - 80 kB
Record duration SR=16kHz 10 sec
Dimensions dia 22 mm length 90 mm
Power supply 3V - 30 V DC
Work temperature
-50 to +70 C°
Interface RS - 232C
Input analog channels 8
Precision 12 bit
Overload 20000 g

REP is intended to store data from current processes during flight of ammunition in real time.

   Recorder

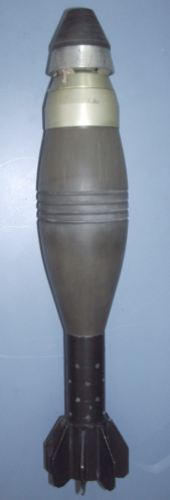

RADIO PROXIMITY FUSE
Proximity fuse


PF progr

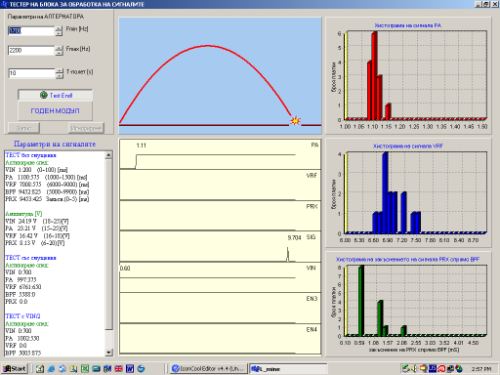

Test SW panel

Top PF CPUPF RF

PC boards

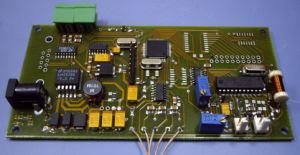

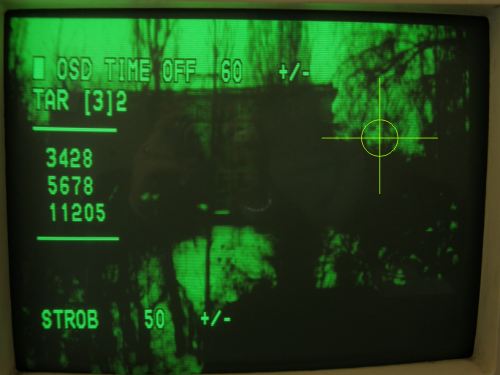

LASER RANGE FINDER ON-SCREEN DISPLAY (OSD)


OSD LRF

OSD LRF info



OSD controller

OSD Controller

Technical parameters:
No of targets
3
Strobe adj.
50 - 20000
OSD time off
10-60 sec
Remote distance
30 m RS232
Power supply
8-36 V DC
